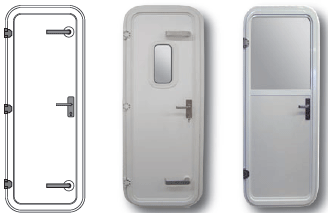

HEAVY DUTY DOORS
The Houdini marine heavy duty door is perfect for offshore vessels operating in harsh environments and where a high degree of weather tightness is required. The boat door is robust yet lightweight and practical; all fittings and fixtures have been carefully selected to ensure long-term trouble free operation.
Each door is designed and manufactured specifically to meet your operational requirements.
DNV TYPE APPROVAL
Houdini’s heavy duty doors were granted type approval from Det Norske Veritas Germanischer Lloyd (DNV-GL), following extensive testing.
Features:
-
Doors employ clamp frame technology which requires no drilling of the vessel’s structure, ensuring very quick and easy installation
-
Joints in the frame are welded for extra strength
-
Door panels are made from a GRP/foam composite with aluminium frame for stiffness, durability and excellent strength to weight ratio – essential in todays HSLC requirements
-
Top quality stainless steel mortice locks and handles
-
Cast stainless steel hinge bodies with phosphor bronze hinge pins
-
Double synthetic rubber seals to ensure security and weather tightness
-
The standard fixing frame will fit structures up to 25mm thick – thicker structures on request
-
Outward opening only
Options:
-
Fixed or opening framed window
-
Half-glazed door incorporating a fixed glass panel in the top of the door
-
Mitre or radius corners (with an aperture corner radius of 100mm)
-
Independently operated dog handles
-
Single lever operated 3 dog handle closing system (see below)
-
The number and positions of hinges, dog handles and locks can be specified according to size and location of the door and degree of weather tightness required
-
Heavy duty hold-backs to secure door in the open position
-
Locks can be keyed alike
-
Wheelchair friendly thresholds available on request
MULTI-POINT LOCKING SINGLE OPERATION DOOR
A new development for our highly successful boat heavy duty door is a single operation multi point locking system.
The door can be provided with a 3 point full stainless steel lock, operated by a single handle. This allows easy and quick operation of the door whilst achieving maximum watertightness.
LIGHT DUTY DOORS
The light duty boat door provides an economical option for a lightweight internal door or a sheltered external door.
Features:
-
Quick and easy installation using the clamp frame system, avoiding the need to drill the vessel’s structure
-
All joints are fishplated and screwed together
-
Hinges are moulded nylon with a stainless steel pin
-
Handles without locks are fitted as standard
-
Door panels are made from a GRP/foam composite panel with aluminium frame for stiffness, durability and excellent strength to weight ratio
-
Synthetic rubber seal fitted to door to provide a good degree of watertightness
-
Standard fixing frame will fit structures from 3-25mm thick
-
Outward opening only
Options:
-
Marine doors can be provided with a glazed top panel in the door – or separate framed window
-
Mitre or radius corners (aperture corner radius 100mm)
-
High quality all stainless steel mortice locks can be supplied with key locks or toilet privacy locks
-
Wheelchair friendly thresholds
-
These doors cannot be provided with dog handle
BULKHEAD SLIDING DOORS
These boat sliding doors are for fitting to the side or aft of a vessel’s structure and mounted on the external surfaces.
Features:
-
High quality stainless steel marine sliding door lock with key operation and thumbturn internal operation
-
Door panels are made from a GRP/foam composite panel with aluminium frame for stiffness, durability and excellent strength to weight ratio
-
Stylish aluminium garage with face fixing flange
-
Brush seals fitted to garage and back of door to provide weathertightness to door
-
4-wheel roller hangers made from high performance moulded nylon and stainless steel
-
Stainless steel hanger track and bottom guide rail
-
Moulded nylon torpedo bottom guides
-
Only available with mitred corners
Options:
-
Fixed boat window or glass panel (single or double-glazed) in top of door
-
Locks can be keyed alike
